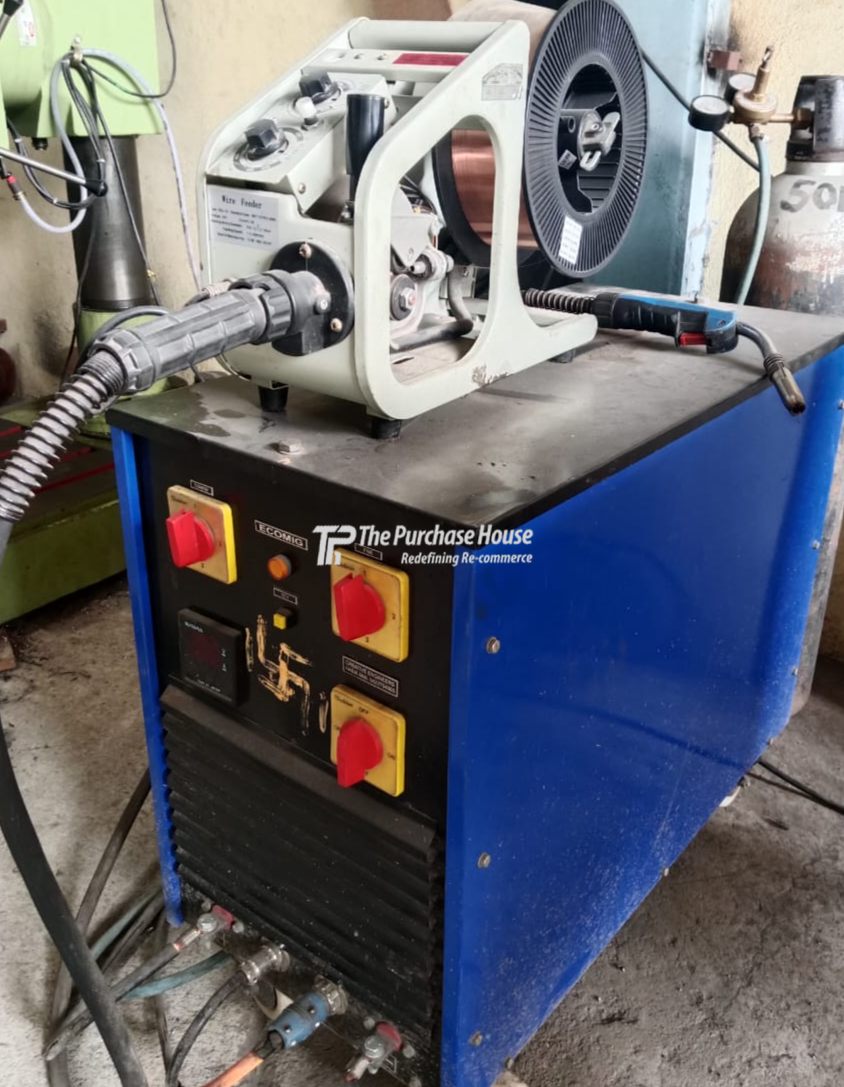

WELDING MACHINE
Power Source Migmaster 250 Rated Output :-250 Amps @ 27 Volts d.c...
Power Source Migmaster 250 Rated Output :-250 Amps @ 27 Volts d.c. Duty Cycle, 208/230V Unit: 50 Percent @ 60 Hz.; 40 Percent @ 50 Hz. 208/230/380/400/460/575V Unit 35% for 208 through 400V; 50 Percent for 460 & 575V Primary Input :-Single Phase 208/230; 208/230/380/400/460/575 Volts 50 60 Hz Primary Input Amperes :- 208-71, 230-62, 380-37,400-36, 460-31, 575-25 Output Current Range :- 30 to 280 Amps. Maximum Open Circuit Volts :- 55 v.d.c. Feeder Feed Type Push Wire Sizes :- Hard 0.023 Inch (0.6mm) through 0.045 Inch (1.2mm) Cored :- 0.030 Inch (0.8mm) through 1/16 Inch (1.6mm) Soft 0.035 Inch (0.9mm) and 3/64 Inch (1.2mm) Feed Rate 20-650 IPM Gunmaster 250 Tourch Cooling Air Gooseneck Angle 45 Degree Rated 60% Duty Cycle (DCRP) Amps: 200 w/Argon Mixtures, 300 w/CO2 Physical, Net Weight :- 210 lbs (95 Kg.,) Height :- 32.25 Inche (819mm), Width :- 19.5 Inche (495mm), Depth :- 40.0 Inche (1016mm)
Specifications: Type: Other; Output in Amp / Kva: 250;
Brand : Esab
Product Code : TPHIM515
